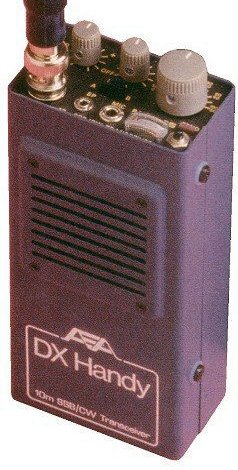

AEA DX Handy Ten
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
Any 50 KHz portion of 28-29 MHz |
| Mode: |
SSB/CW |
| RF Power output: |
2 W @ 9 VDC |
| Sensitivity: |
0.5 uV (15 dB S/N) |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
8.4-9 VDC |
| Current Drain: |
RX: 70 mA
TX: 620 mA |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
66 x 142 x 39 mm |
| Weight: |
710 gr |
| Manufactured: |
Japan, 198x-19xx |
| Other: |
RIT, NB, S/RF-meter. Built-in CW key |
